SKU: PDTIOT-ISS04
The Kerlink iStation outdoor LoRaWAN gateway is the ideal solution for your smart city, smart building or every smart project.
Details Additional Info Data Sheet Manual
The Kerlink iStation outdoor LoRaWAN® gateway is the ideal solution for your smart city, smart building or every smart project.

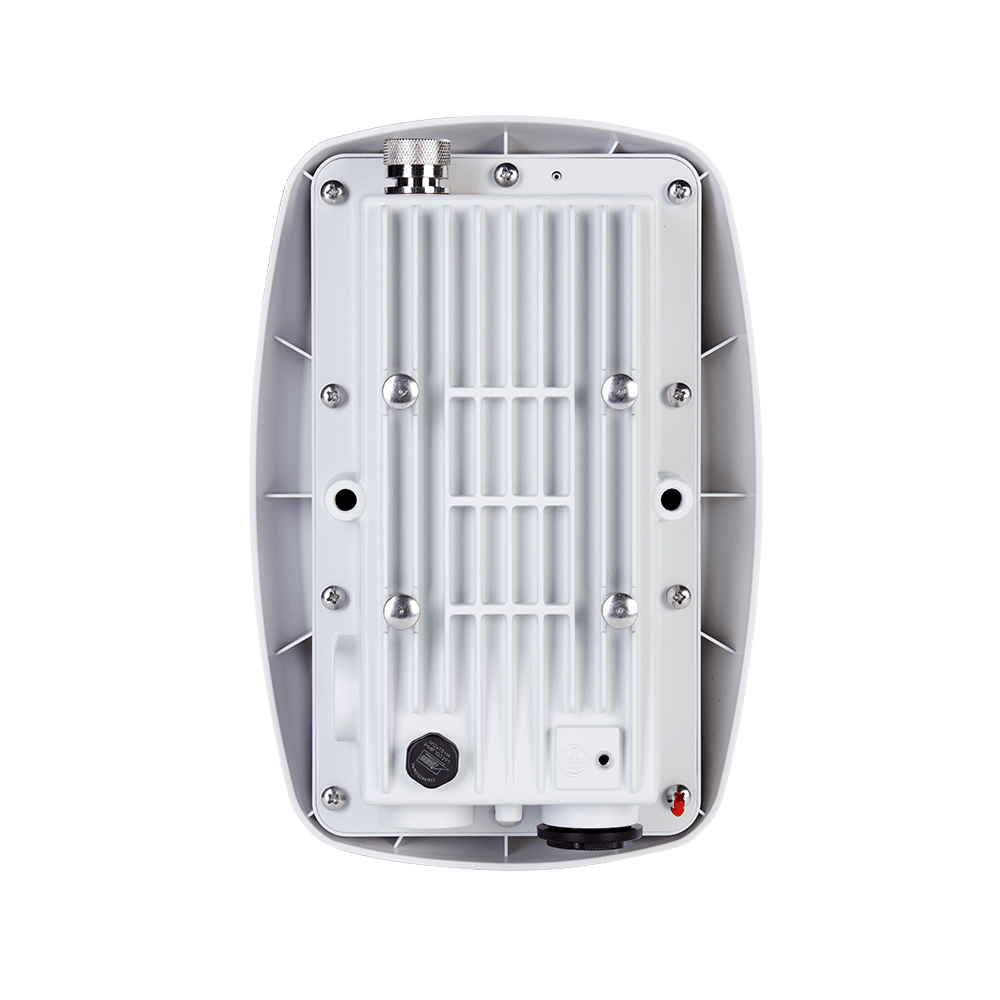

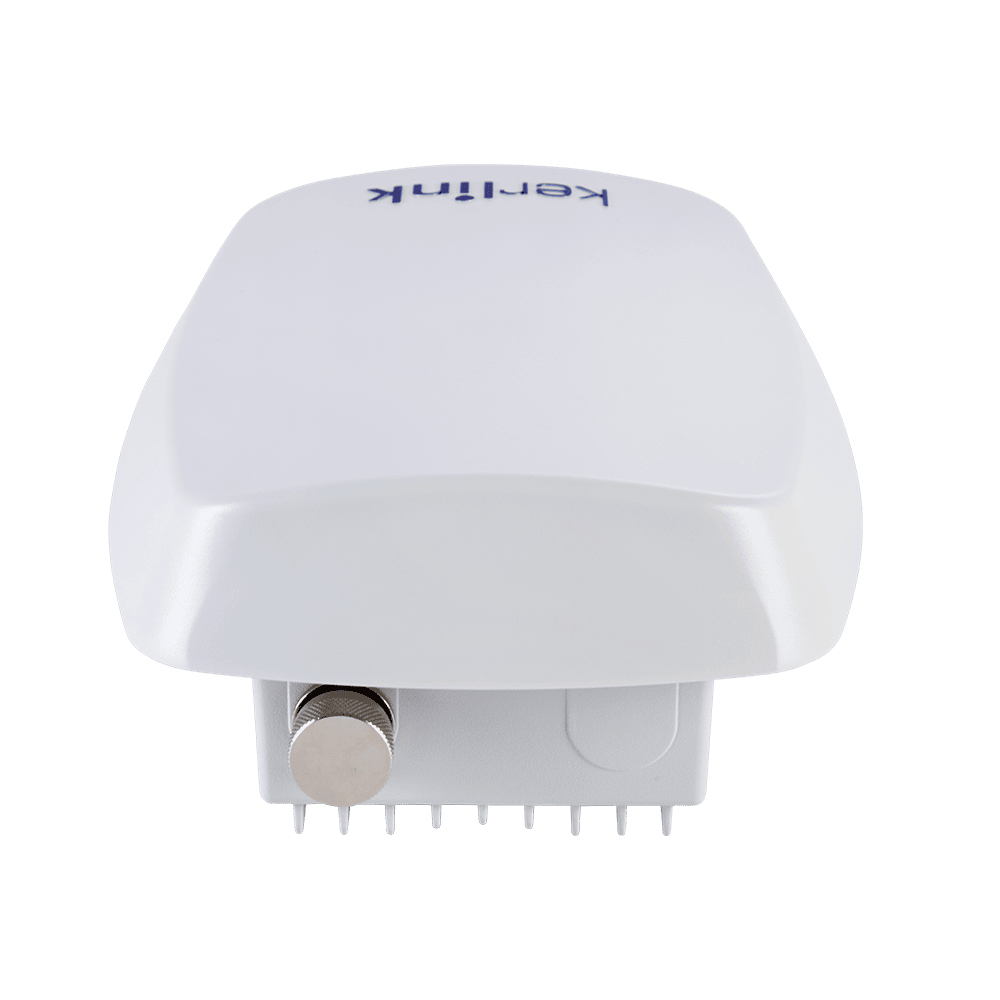

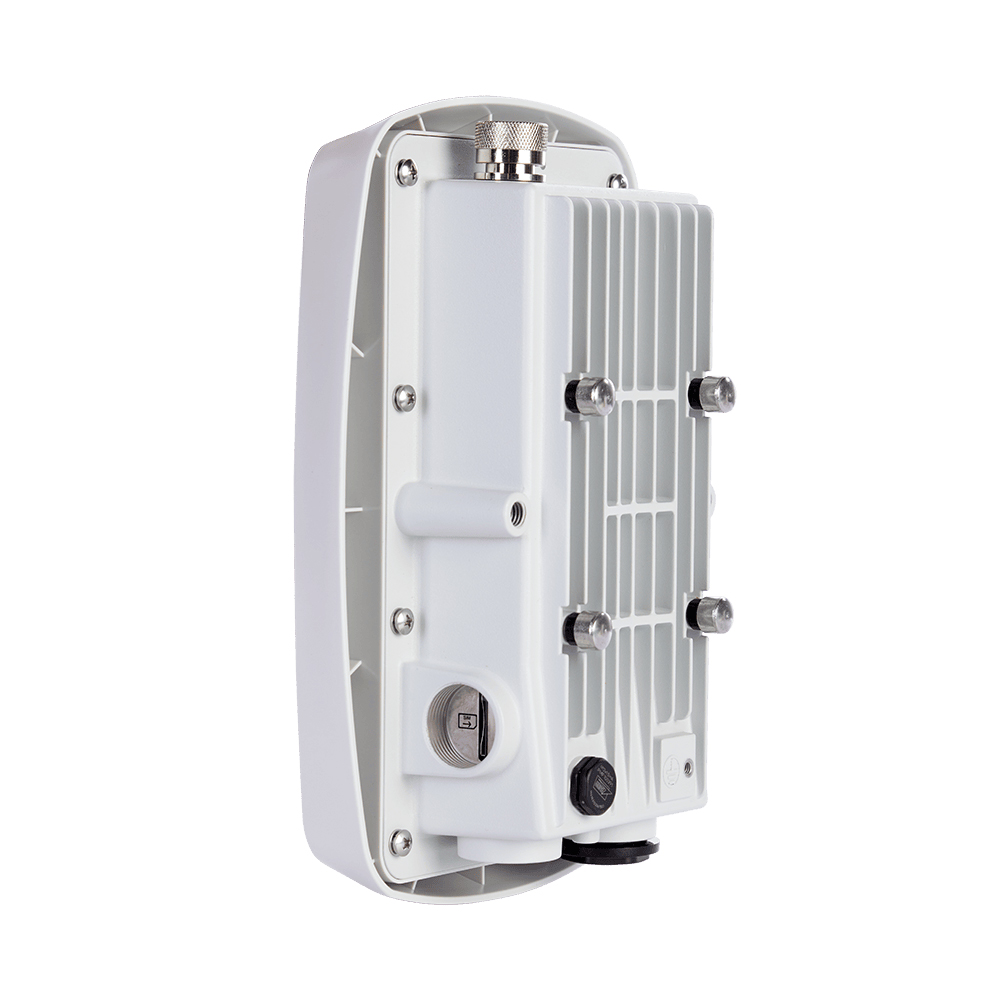

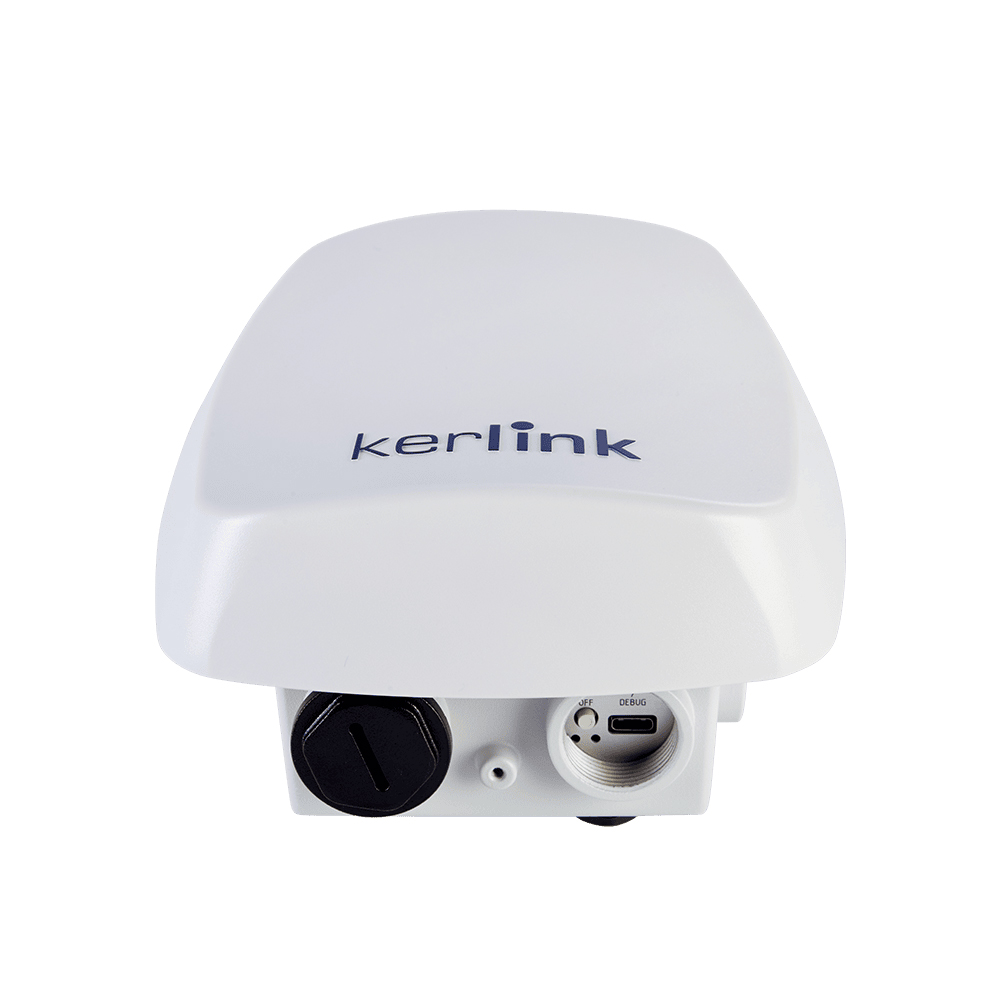

With its carrier-grade IP67 casing, the iStation outdoor LoRaWAN® gateway is perfect for industrial and outdoor use where both simple, fast installation and superior coverage is required.
Available with pre-configured Plug & Play installation options, our LoRa gateways can be shipped ready to work straight out of the box. Accelerate your time to market from initial Proof of Concept testing right through to commercial scalable deployments with our gateway provisioning service.
The gateway meets the standard requirements of public operators, MVNOs, cable operators, private businesses or public authorities. This gateway is capable of connecting a high volume of devices and manages thousands of bidirectional messages every day.
Suitable in a wide range of applications, including:
| LoRaWAN® | |
|---|---|
| Protocol | LoRaWAN® (Class A, B & C) |
| Frequency | EU863-870 MHz (UK ISM Band) |
| Channels | 8 × RX (125 kHz, Multi Spreading Factor) + 1 × RX (250 kHz or 500 kHz, Mono Spreading Factor) + 1 × RX (FSK) = 10 RX + 1 TX |
| Tx Power | 5 dBm ~ 27 dBm (Adjustable) |
| RX Sensitivity | Up to -141 dBm (SF12) |
| Antenna | Fully Integrated Internal Antenna (Peak Gain: 2.6 dBi); External Antenna Optional |
| LBT Sniffer | Supported (Listen Before Talk) |
| Rejection Filters | Built-in High-Rejection Filters |
| Backhaul Connectivity | |
| Ethernet | 1 × RJ45 10/100 Mbps (Waterproof Connector) |
| Cellular | 4G LTE Worldwide Module with 3G / 2G Fallback |

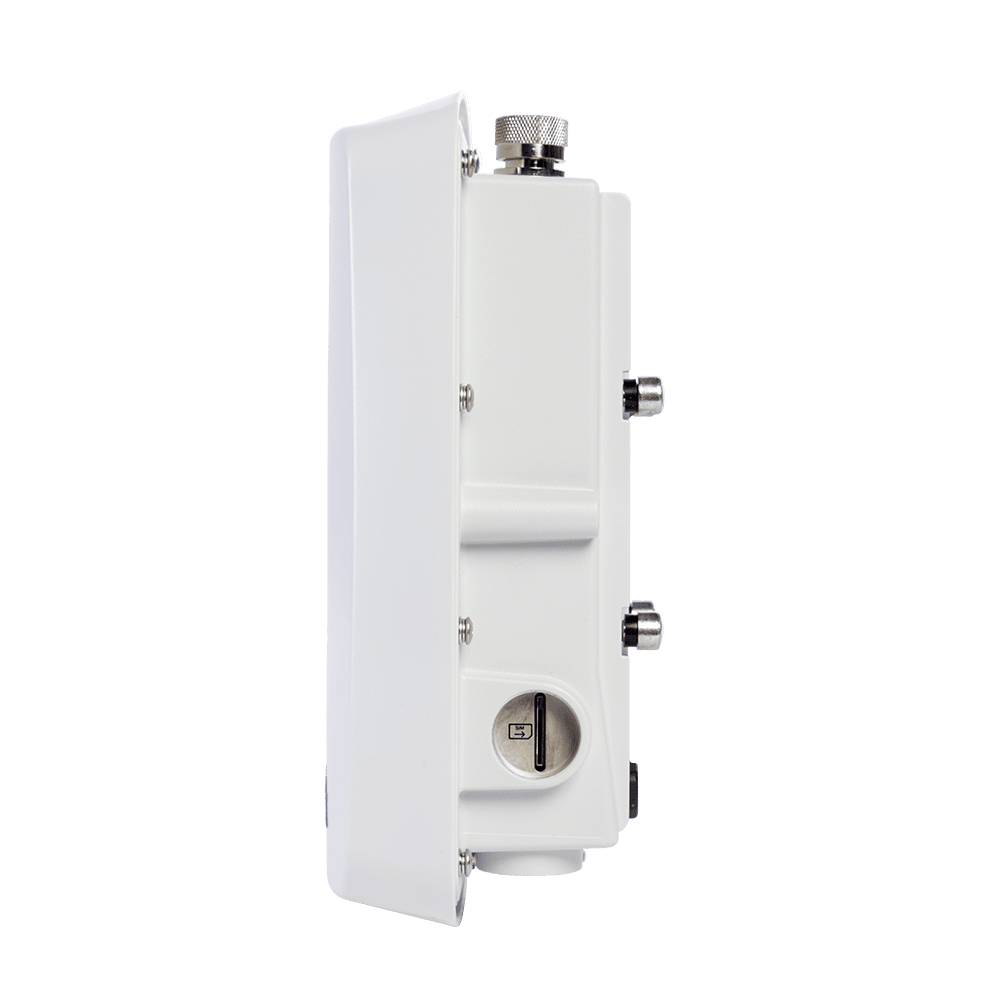

| SIM Slot | 1 × Mini SIM (Accessible Without Opening Casing) |
| GNSS | Integrated GPS (Internal Antenna) |
| Processing & Memory | |
| Processor | ARM Cortex A9 |
| RAM | 256 MB DDRAM |
| Storage | 8 GB eMMC (6 GB User-Available) |
| Security & Management | |
| Secure Boot | Signed Firmware (SecureBoot) |
| VPN | OpenVPN, IPsec |
| Programmability | Python 2, C / C++, Shell |
| Embedded Network Server | Wanesy SPN V2.0 (Optional) |
| Zero-Touch Provisioning | Supported (Magic Link) |
| Remote Management | Kerlink Wanesy Management Centre, The Things Stack, ChirpStack, Actility, LORIOT |
| Dimensions | 265 × 165 × 100 mm |
| Weight | 1.4 kg (With Mounting Kit) |
| Casing Material | Aluminium (Back), Polycarbonate (Front) |
| Mounting Kit Material | Stainless Steel |
| Installation | Pole or Wall Mounting (No Opening Required During Installation) |
| Backup Battery | Built-in (Clean Application Shutdown on Power Failure) |
| Operating Temperature | -40°C ~ +60°C |
| Relative Humidity | ≤ 95% (Non-condensing) |
| Ingress Protection | IP67 |
| Regulatory | CE, UKCA, RoHS |
| Power Supply | 1. PoE (IEEE 802.3af / at, Mode A & Mode B, via RJ45) 2. DC 10 ~ 60V via Waterproof Power Connector |
| Typical Power Consumption | 7 W (Cellular Active) |
| Maximum Power Consumption | 12.5 W |
All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team.
Our technical sales team are also happy to advise customers on the best outdoor LoRaWAN gateway to suit specific project requirements.
