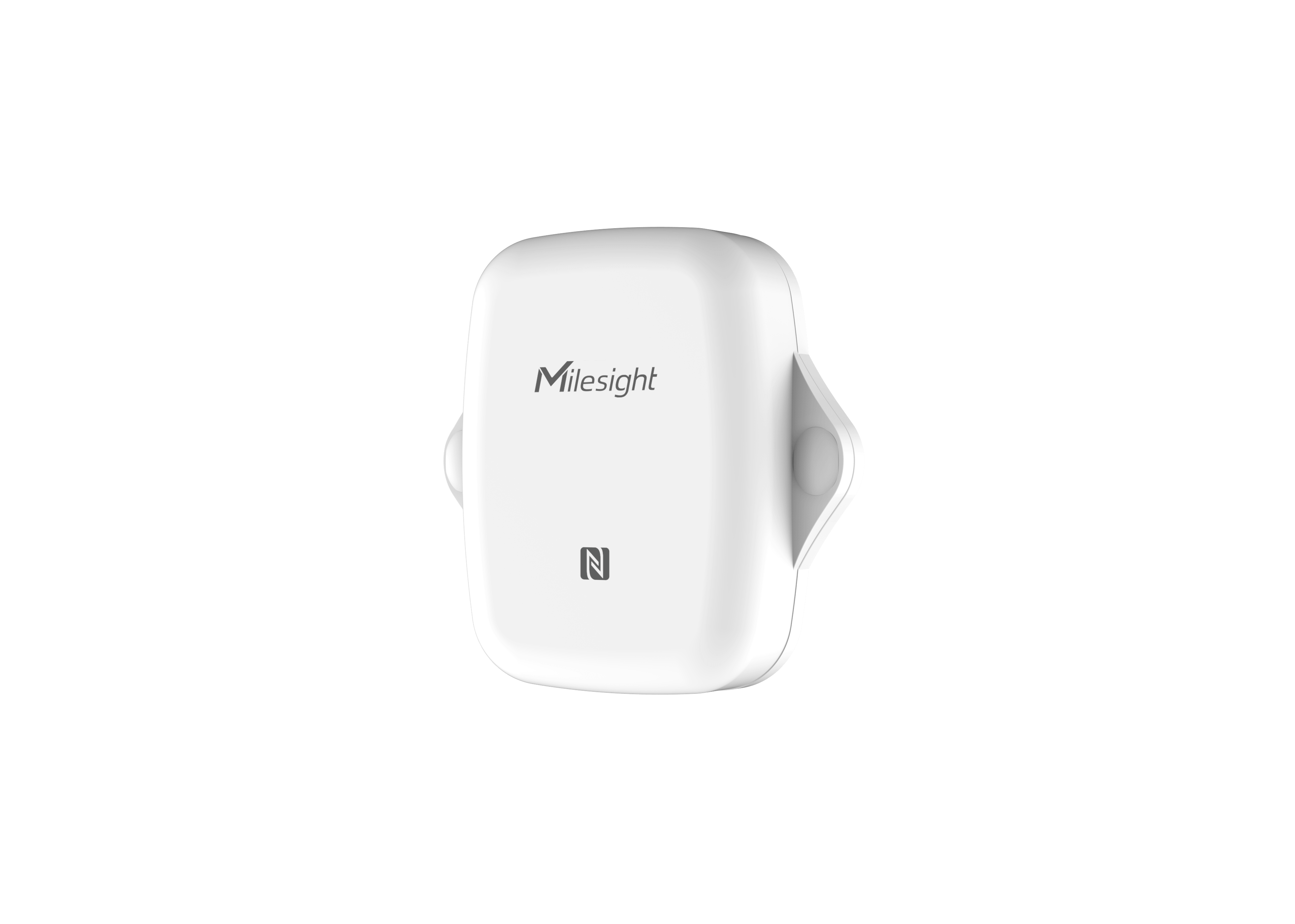

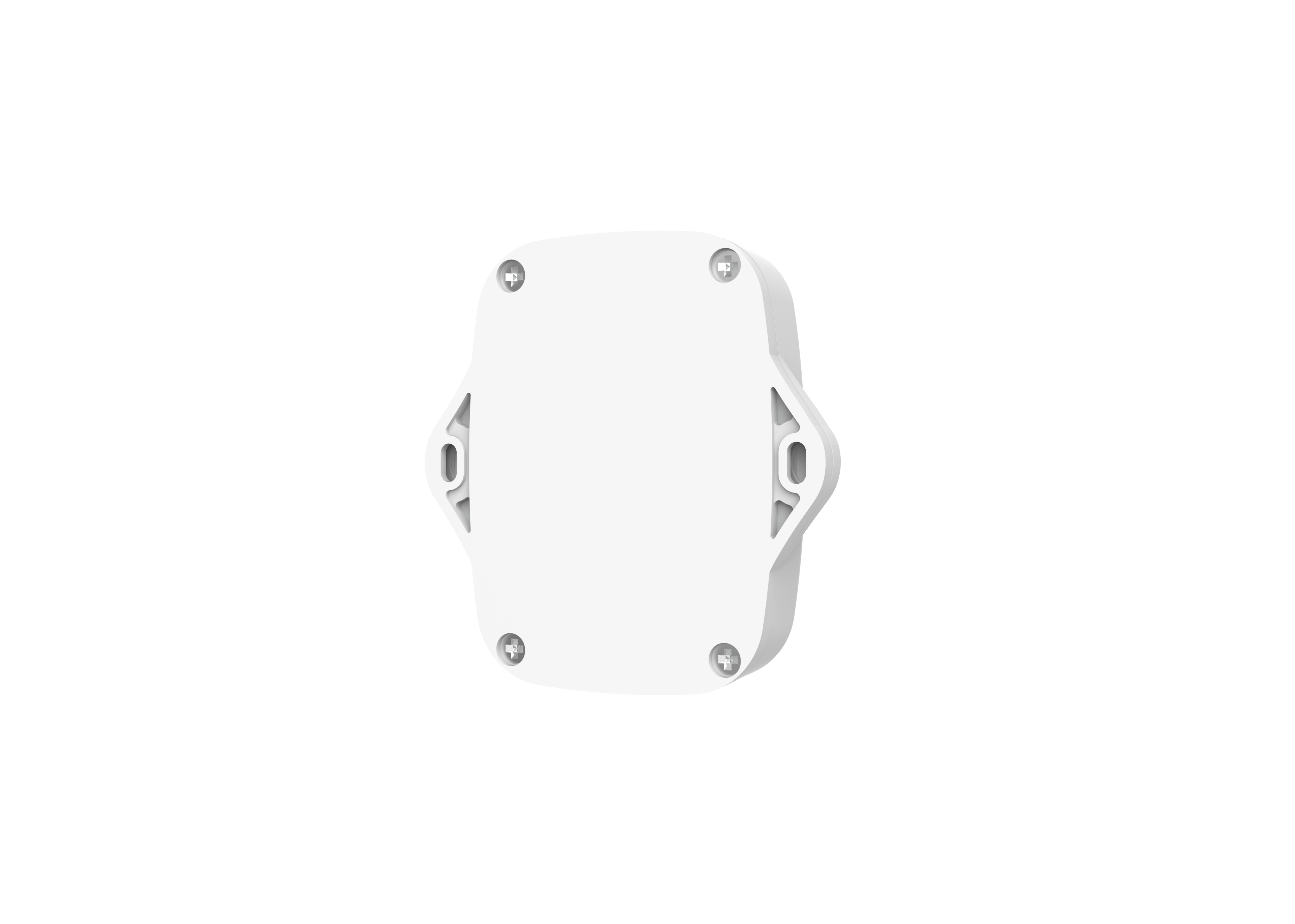

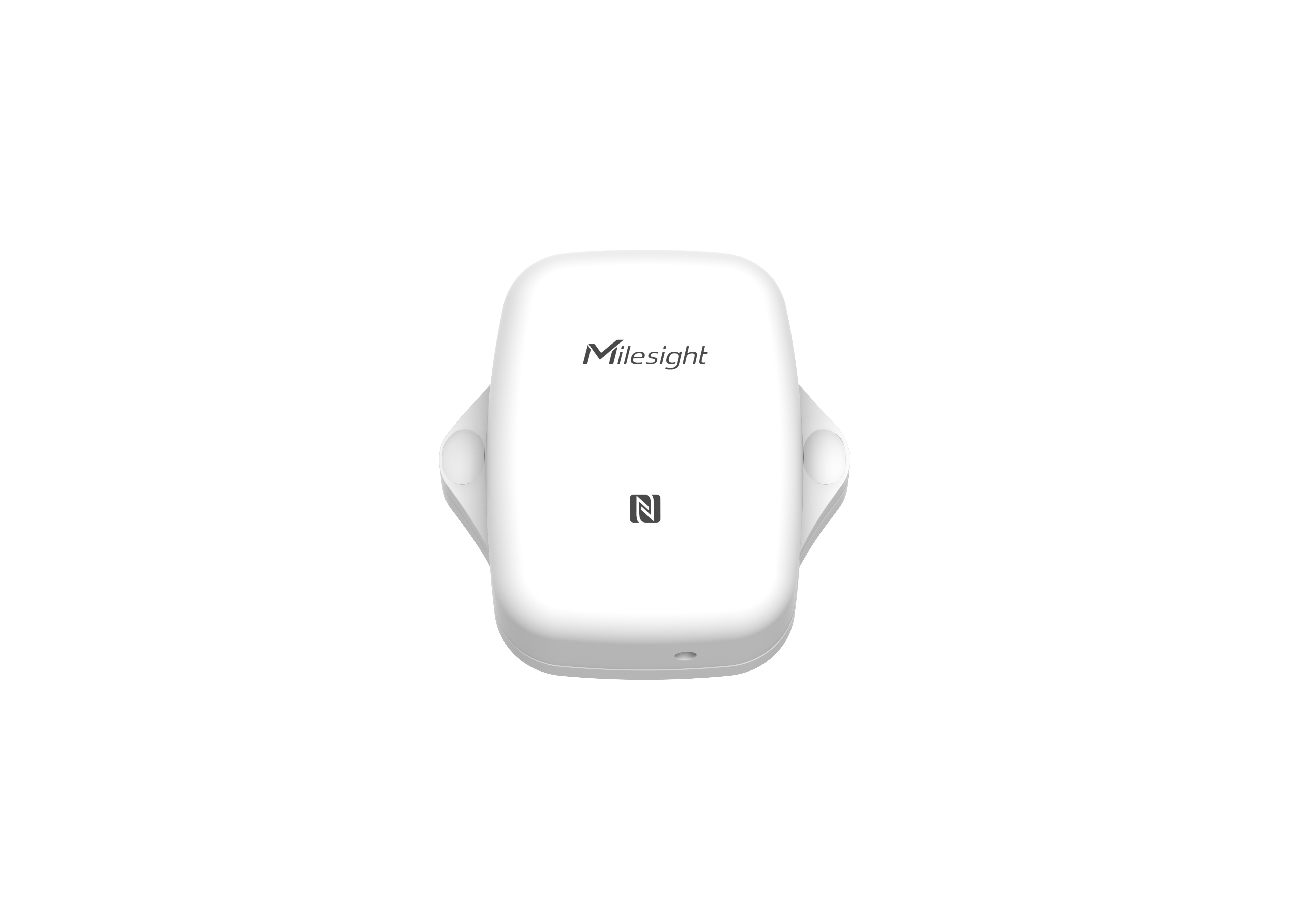

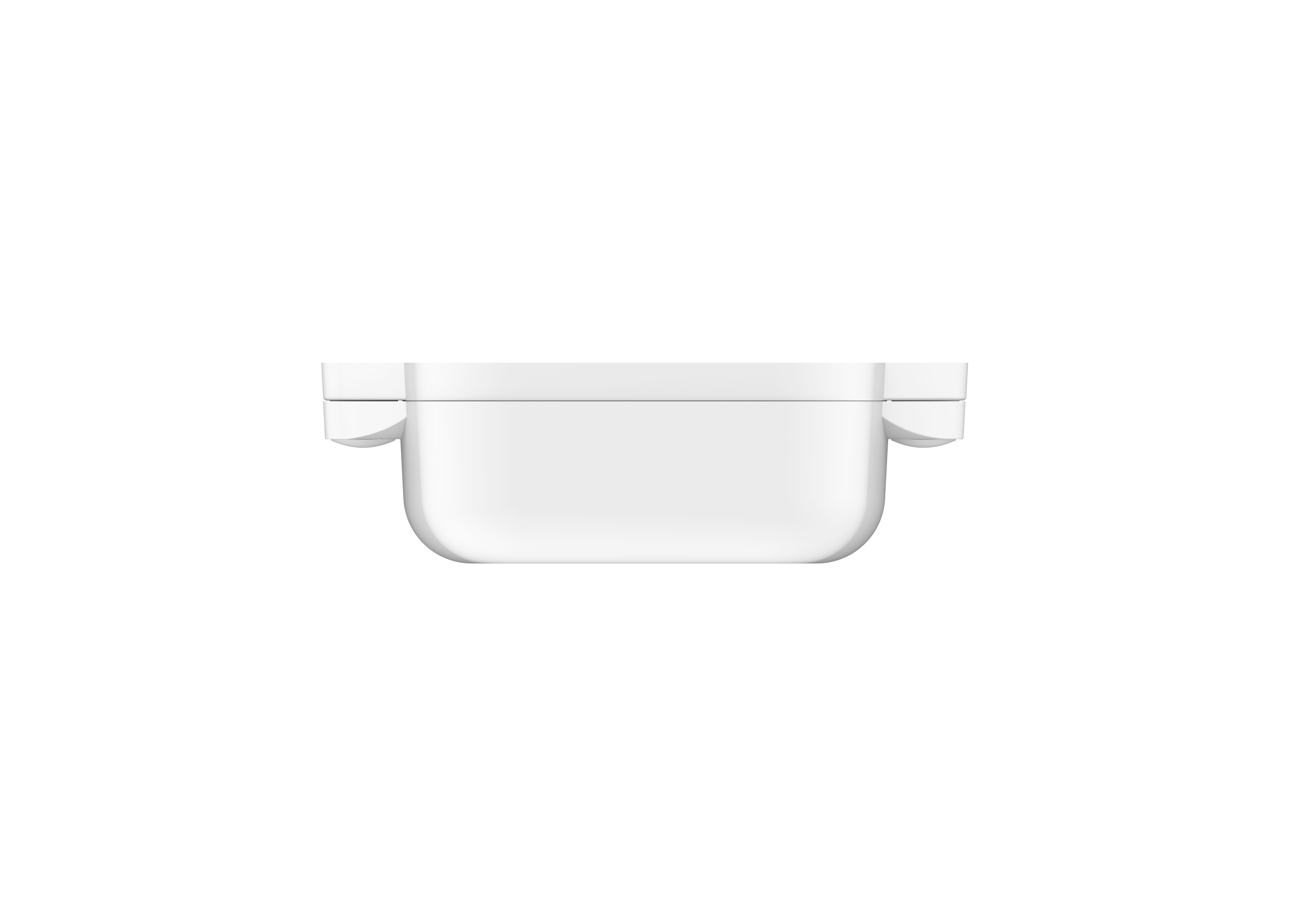

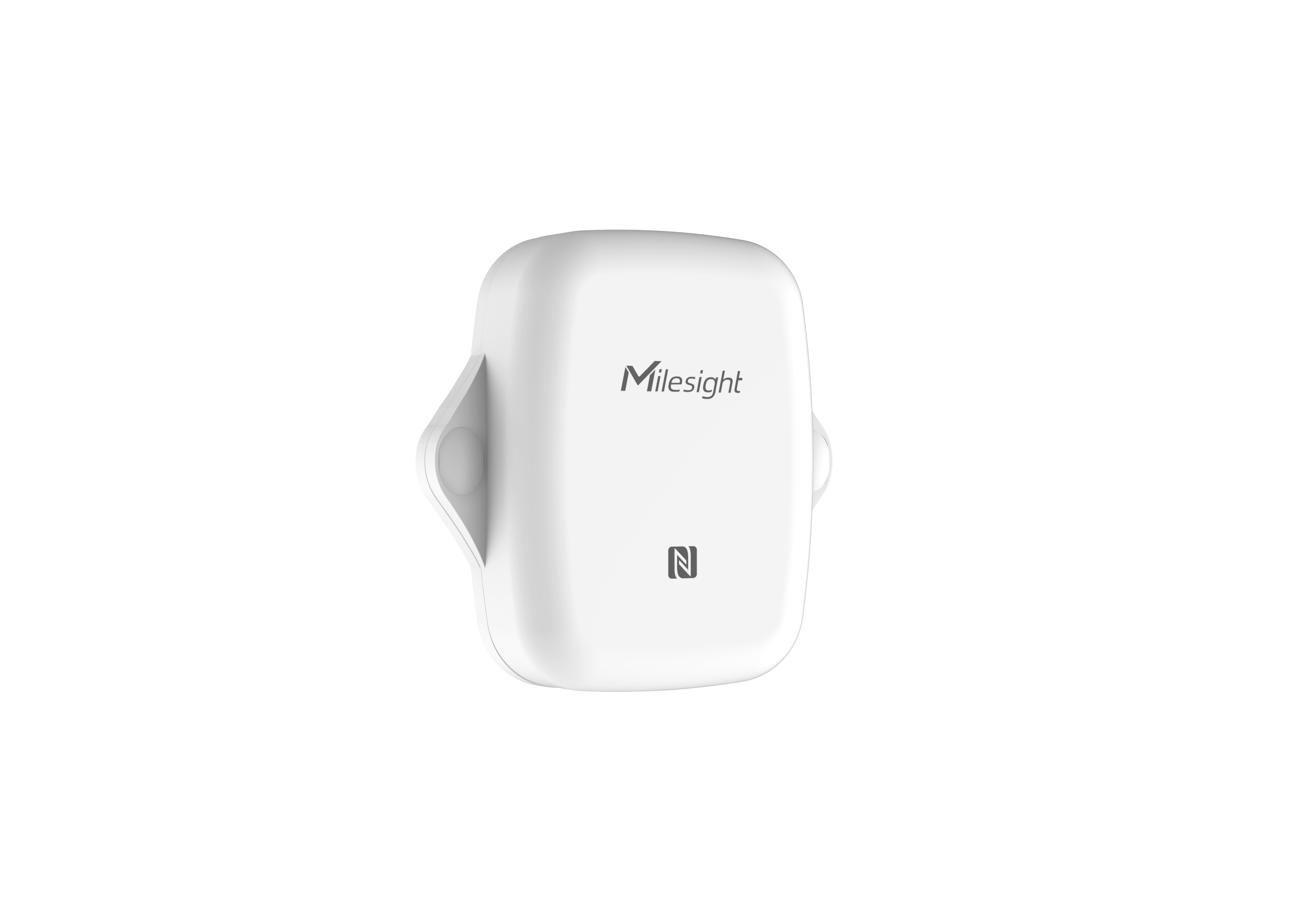

Milesight EM300 Temperature & Humidity Sensor

SKU: EM300-TH-868M

The EM300-TH offers a compact temperature and humidity sensor, ideal for a wide range of applications.

Details Additional Info Data Sheet Manual

Quantity:

- +

£42.25 (RRP) +VAT


Product Description

Taken from Milesight's EM300 series of environmental monitoring sensors, the EM300-TH offers a compact temperature and humidity sensor. Ideal for a wide range of applications, this sensor has an IP67 rating making it suitable for both indoor and outdoor installations.

With ultra-low power consumption, the Milesight EM300-TH has a standard battery life of up to 5 years. Users also have the option to order a special partcode with dual battery holder to increase battery life to up to 10 years.

Some example use cases for this LoRaWAN® temperature and humidity sensor include:

  • Smart Homes
  • Smart Buildings & Offices
  • Warehouses
  • Greenhouses
  • Cold Chain Management
  • Restaurants
  • Supermarkets

Recorded data is transmitted over a LoRaWAN® network, helping to secure any privacy concerns. Based on the standard LoRaWAN® protocol, the EM300-TH connects to a LoRaWAN® gateway and can then be visualised by your preferred dashboard or through Milesight's IoT Cloud.

Features

  • Embedded with Sensirion high-precision sensor chip
  • IP67 UV-resistant and waterproof enclosure for harsh environment applications
  • Equipped with NFC for easy configuration
  • Certified for EN12830 Standard
  •  Temp = -30 degrees to 70 degrees. Humidity = 0% to 100% RH., with an accuracy of 0.3 degrees (temp) and +/-3% RH accuracy.

We can supply a third-party online wireless sensor monitoring and notification system to view data and set alerts via SMS text and email. Ask us about our zero-touch provisioning service. This sensor can be supplied pre-configured and ready to go.

Parameters

Temperature Range -30°C to 70°C
Temperature Accuracy 0°C to 70°C: ±0.3°C
-30°C to 0°C: ±0.6°C
Humidity Range 0% to 100% RH
Humidity Accuracy 10% to 90% RH: ±3%
Below 10%, Above 90% RH: ±5%
Protocol LoRaWAN®
Available Frequencies EU868 (Available in other frequencies on request)
Sensitivity -137 dBm @300bps
Operating Temperature -30°C to 70°C
Relative Humidity 0% to 100% (non-condensing)
IP Rating IP67
Housing Polycarbonate
Dimensions 88.5 x 85.3 x 27 mm
Installation Wall Mounting
Power Supply 1 x 4000 mAh ER18505 Li-SOCL2 battery (extendable to 2 batteries)
Battery Life Up to 10 years (10 min interval)


Discounted Trade Pricing: Contact us for trade pricing, to place an order or to discuss your IoT projects.



All of our products are available to customers throughout Europe. For more information on shipping costs, currency conversions and lead times, please contact our technical sales team. Our team are happy to advise customers on the best portable LoRaWAN® temperature & humidity sensors for their specific applications on an individual project basis.
